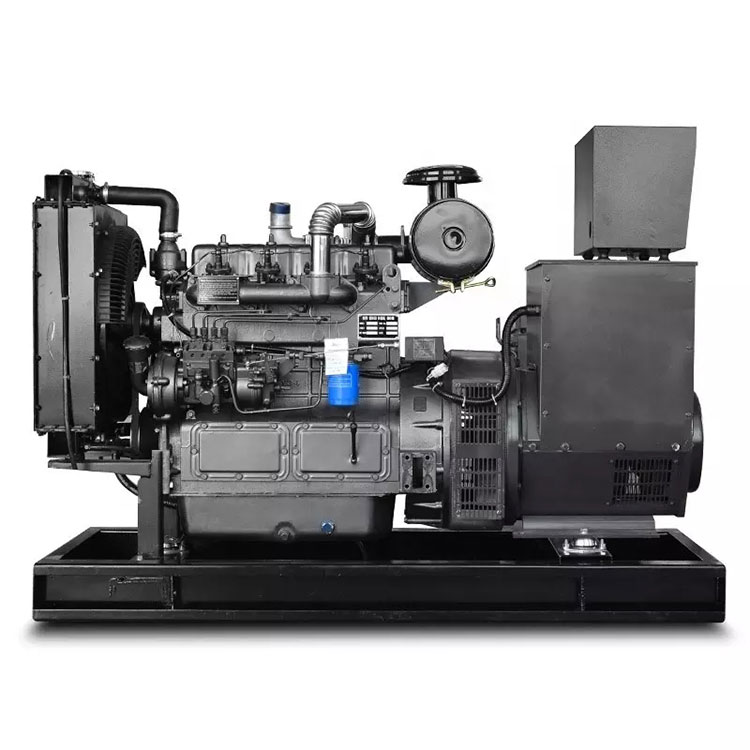

Diesel Generator Set 75KW

Diesel Generator Pone Cum XG-75GF Cumminum instrumentum

altiore Location

Pondus

3000(mm)*1200(mm)*1600(mm)

2100(kg)

Type Set:

XG-75GF

Sto Power:

82.5KW/103.125KVA

Prima Potestas:

75KW/93.75KVA

Ratum Current:

135（A）

Rated Frequency:

50（Hz）

Satus-sursum tempus:

5～6（s）

Factor potentiae:

0.8（Lag）

Ratum Voltage:

400/230（V）

Standard Features

Engine:DCEC Cummins 6BT5.9-G2/Radiator 50℃max/Fans balteo acti sunt, custodiae securitatis/24V crimen alternator/Arida genus colum aer, cibus colum, colum/Alternator: unus gerens alternator/IP23, genus insulationis H/H/

Linea circa ruptor/Latin imperium panel/Absorber/muffler/User manual

Diesel Engine Data

Fabrica:

DCEC Cummins

Exemplar:

6BT5.9-G2

Sto Power:

92KW

Ratum Volo:

1500（r/min）

Cyclus:

4 plaga

Cylindrus Dispositio:

6 in line

Obsessio:

5.9L

Pertulit et percussus est:

102*120（mm）

Cogo Ratio:

17.5:1

Praefectus Type:

Electronic

Satus altilium voltage:

24V DC

Aeris Attractio Ratio

Aeris Attractio Ratio:

Aeris naturalis refrigeratum

Max Attractio Restrictio:

6.35kPa

Igneus Capacitas:

6.48m3/min

Fluxus aeris:

158m3/min

Ratio exhauriunt

Exhauriunt Gas flow:

16.8m3/min

Exhaurire Temperature:

565

Max Back Pressura:

10kPa

Ratio fuel

Ratio cibus:

Exemplar cibus sentinam

100% (Prima Power) Load:

210g/kwh

Oleum System

Totalis olei capacitatem:

16.4L

Consummatio oleum:

≤0.4g/kwh

Oleum Pressura apud RPM RPM:

350kPa

Ratio refrigeratio

Viam refrigerium:

Aqua refrigeratum

Totalis capacitatis Coolant:

27L

Thermostat:

82-95℃

Max Aquae Temperaturae:

104℃

Alternator Data

Fabrica:

STAMFORD

UCI 274C

Modus Excitatio:

Brushless et sui excitando

Numerus Phase et Access Act:

3-phase 4-filum

Type connectens:

"Y" genus connectens

Capacitas Alternator:

100KVA

Alternator Effectus:

95％

ONERO:

（PRPCX% onus potest currere 1h

Praesidium Level:

IP23

Insulatio Classis, Temperature Surge:

H/H

Telephone Influence Factor (TIF);

50

THF:

＜2%

Altitude:

≤1000m

Genset Electrical Performance

Ordinatio intentionis:

≥±5%

Ordinatio intentionis, Pro re publica:

≤±1%

Subito Voltage Warp (C% Subito Reducere):

≤+25%

Subita intentione Warp (subita crescite);

≤-20%

Voltage Stable Time (C% Subito Reducere):

≤6S

Voltage Stable Time (Subdencrease);

≤6S

Frequentia Ordinatio, Pro re publica;

≤5%

Frequentia Waving:

≤1.5%

Subita Frequentia Warp (100% SuddenReduce);

≤+12%

Subita Frequency Warp (subita crescite);

≤-10%

FrequencyRecoveryTime(100%SuddenReduce);

≤5S

FrequencyRecoveryTime (subita crescite)

≤5S

Fabricator ius technicae alterationis/mutationis melioris emendationis sine praevia notatione reservat
